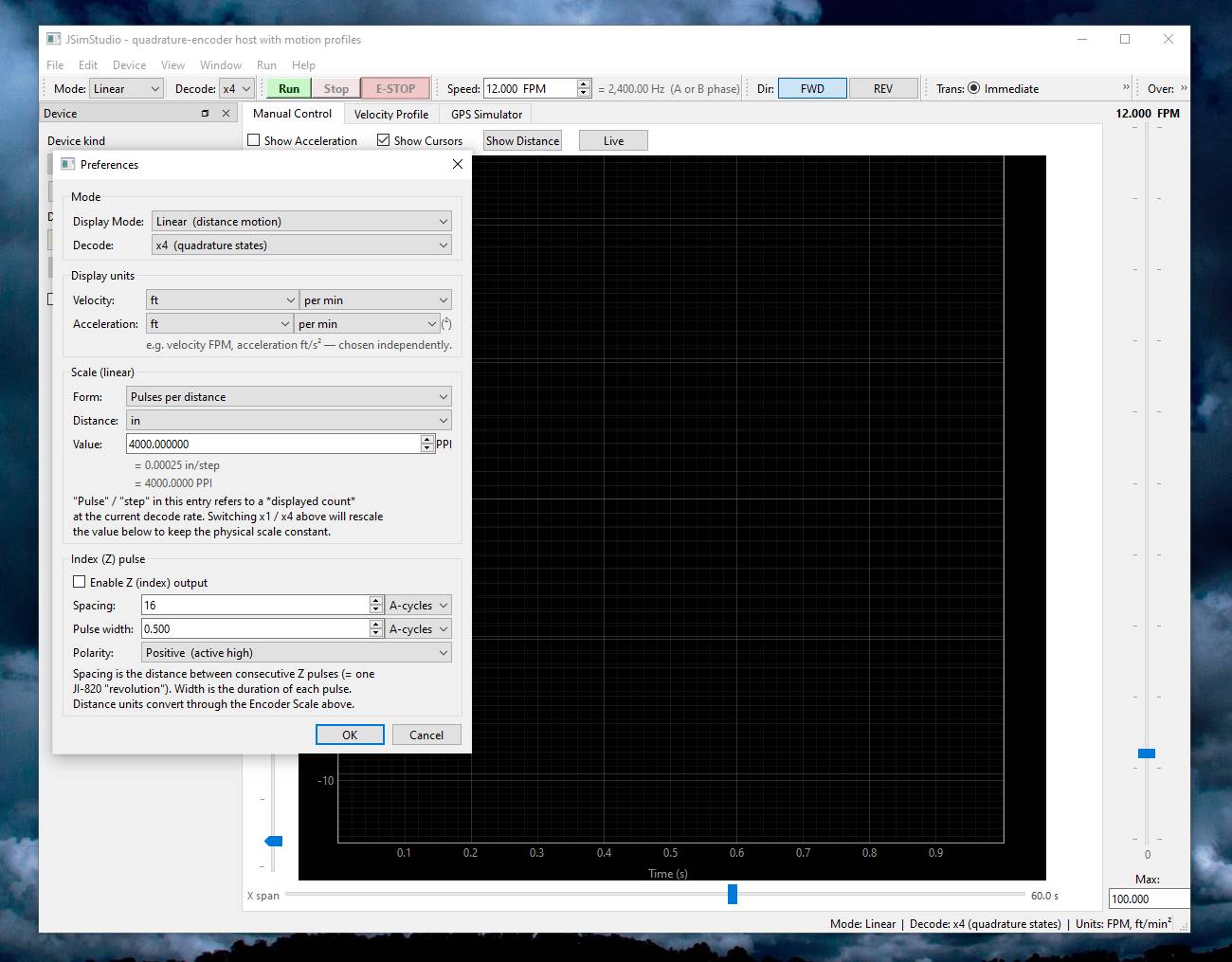

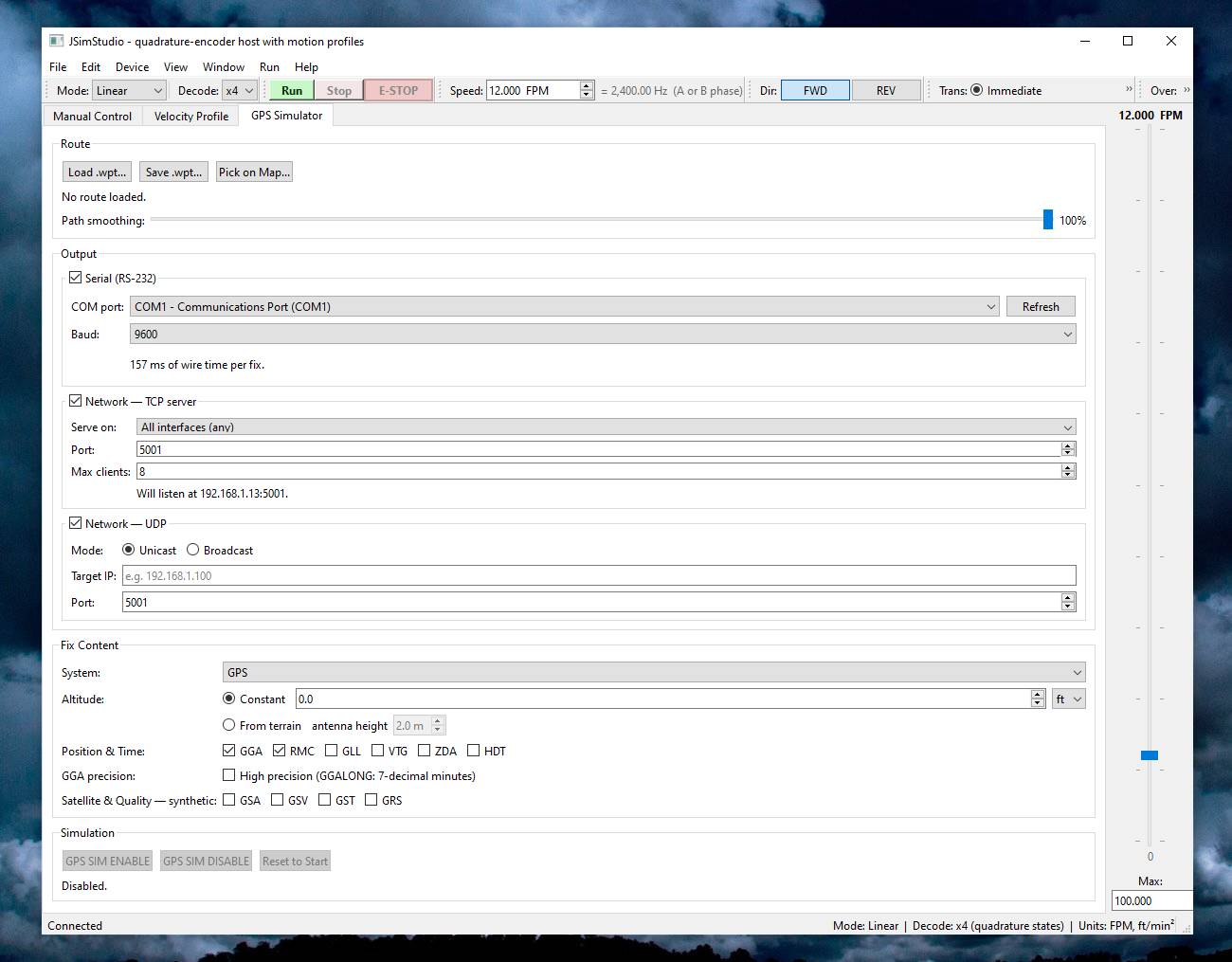

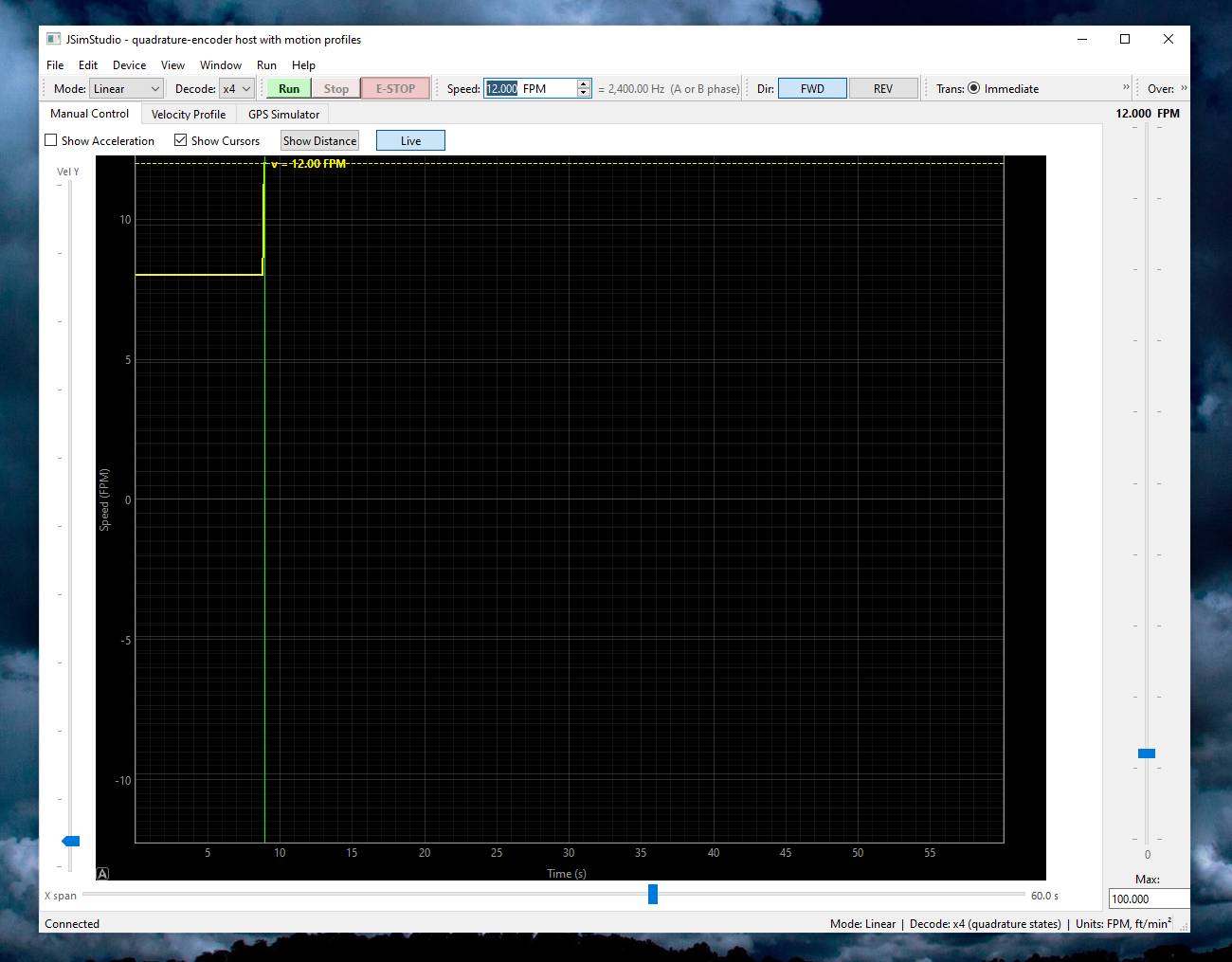

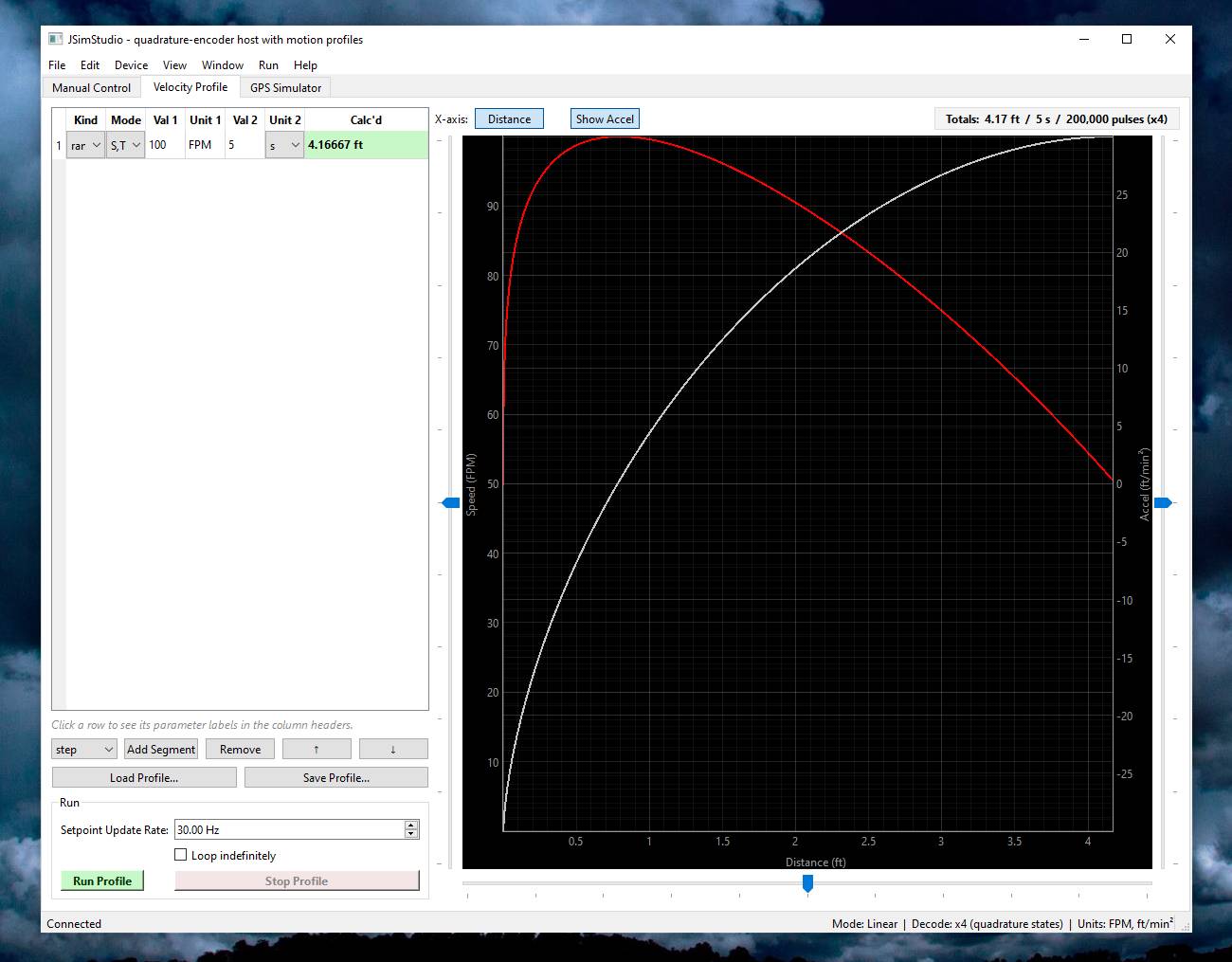

A plea... Deanna and I have been running this site since 2008 and lately we're seeing a big increase in users (and cost) but a decline in percentage of users who donate. Our ad-free and junkware-free download site only works if everyone chips in to offset the revenue that ads on other sites bring in. Please donate at the bottom of the page. Every little bit helps. Thank you so much. Sincerely, your Older Geeks: Randy and Deanna Always scroll to the bottom of the page for the main download link. We don't believe in fake/misleading download buttons and tricks. The link is always in the same place. JSimStudio v1.1.1 👉 Control and simulation utility for the Jupiter Instruments JI-820 USB incremental encoder emulator. JSimStudio is a portable simulation and control utility designed for the Jupiter Instruments JI-820 USB incremental encoder emulator. It allows engineers and developers to simulate encoder signals in real-world units, configure encoder scaling, and generate quadrature outputs for testing encoder-input hardware, PLCs, motion controllers, and software before connecting physical equipment. A built-in motion profile engine makes it easy to create repeatable test sequences using step, ramp, S-curve, and loop segments. JSimStudio also includes an integrated GPS/NMEA simulator that converts simulated encoder movement into standard NMEA-0183 data streams over serial, TCP, or UDP, making it useful for testing navigation and positioning applications. Version 1.1.1 adds a complete rotational simulation mode with RPM, degrees, and radians support, pulses-per-revolution scaling, independently selectable velocity and acceleration units, and the ability to bind GPS/NMEA network output to a specific network adapter. A built-in mock mode allows the software to run without JI-820 hardware attached for evaluation and development. When using an actual JI-820 device, the standard FTDI USB driver is required.  Features: Controls the Jupiter Instruments JI-820 USB incremental encoder emulator Simulates quadrature encoder signals using real-world engineering units Configurable encoder scaling and pulses-per-revolution settings Motion profile editor with step, ramp, S-curve, and loop segments Rotational simulation using RPM, degrees, or radians Independently configurable velocity and acceleration units Built-in GPS/NMEA-0183 simulator Outputs NMEA data over serial, TCP, or UDP Option to bind GPS/NMEA network output to a single network adapter Mock mode allows operation without connected hardware Portable application requiring no installation Supported operating systems: Windows 10 (64-bit), Windows 11 (64-bit) Supported languages: English Changes: v1.1.1 07-19-26 Added full rotational mode with RPM, degrees, and radians support. Added pulses-per-revolution scaling and angle-based motion profiles. Added independently selectable velocity and acceleration units. Added the option to bind GPS/NMEA network output to a single network adapter.    Note: This file has two hits on VirusTotal. We have confirmed these to be false positives. The file is safe. Click here to visit the author's website. Continue below for the main download link. |
||||||||
| Downloads | Views | Developer | Last Update | Version | Size | Type | Rank | |
| 11 | 86 | Funciona Systems | Jul 19, 2026 - 12:58 | 1.1.1 | 259.53MB | ZIP |  , out of 1 Votes. |
|
| File Tags | ||||||||
| emulator Funciona encoder Jupiter JI820 JSimStudio quadrature simulation motion profile GPS NMEA hardware portable utilities testing | ||||||||
