VeroRoute v1.96

Cross-platform software for producing Veroboard (stripboard), Perfboard, and 1-layer or 2-layer PCB layouts. Automatically prevents short circuits and checks for open circuits. Built using the Qt library, and tested on Linux (32-bit and 64-bit) and on Windows 7 (32-bit and 64-bit). Pre-compiled versions available for Windows 7 (32 bit and 64 bit) and for 64-bit Linux Mint 18.3 (Cinnamon/MATE/Xfce/KDE).


Features

Cross-platform

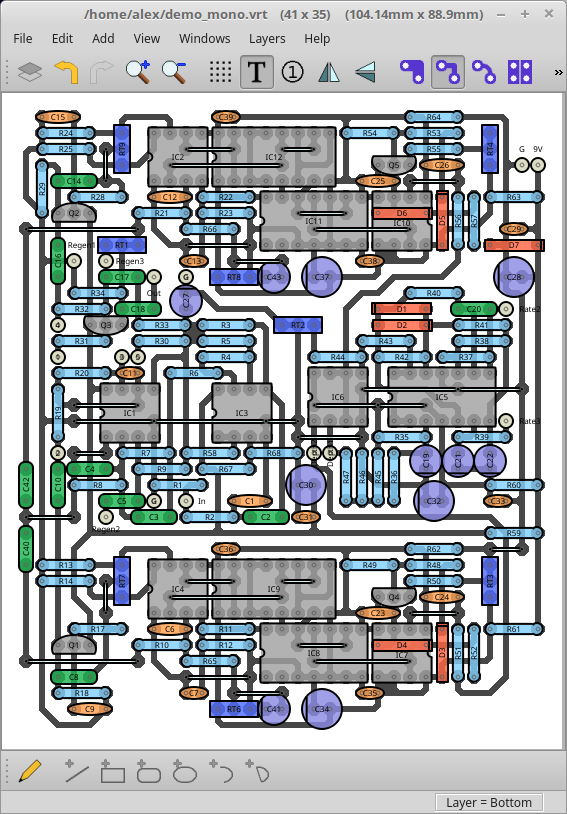

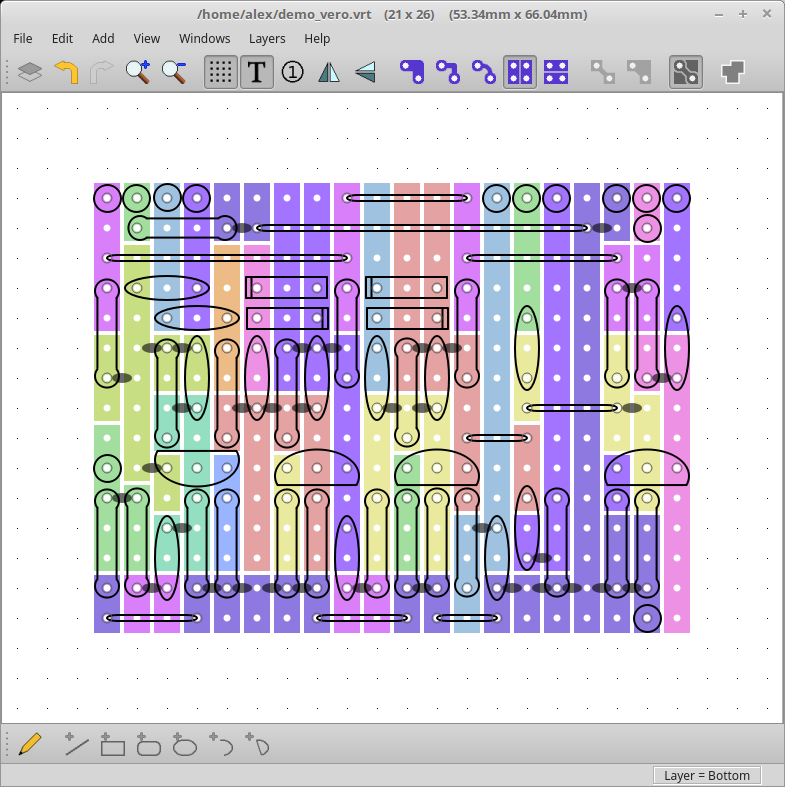

Veroboard and PCB modes
Interactive auto-routing
Connectivity checking & visualisation
Import netlist from a TinyCAD, gEDA, or KiCad schematic , or specify the netlist graphically

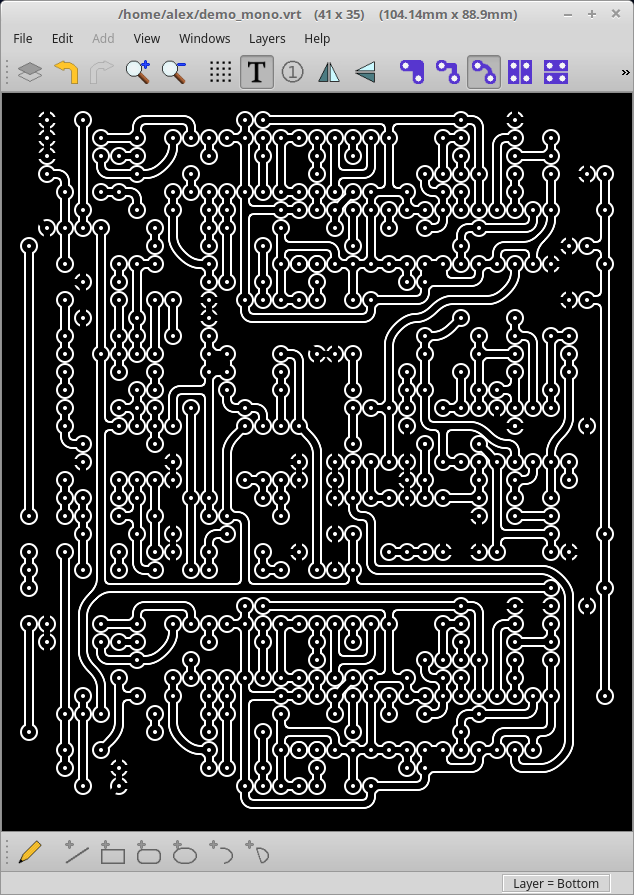

Switch instantly between Fat, Thin, Curved, and Vero track styles

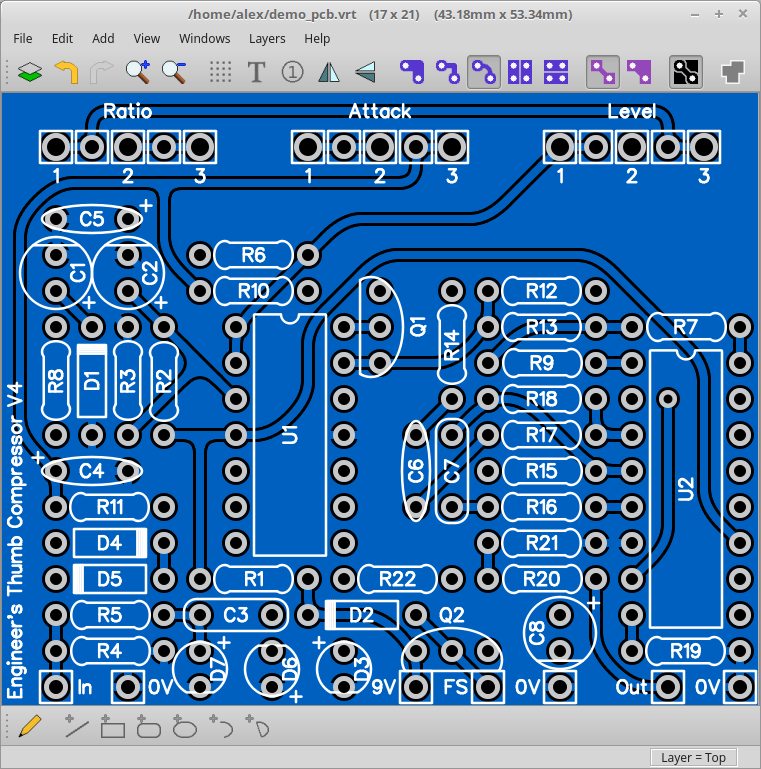

Easily create PCB designs with ground-fill
Save output as PNG image or PDF
1:1 scale PDF output suitable for toner-transfer based PCB creation
Gerber export for easy 1-layer or 2-layer PCB manufacture
Create Bill of Materials and export it

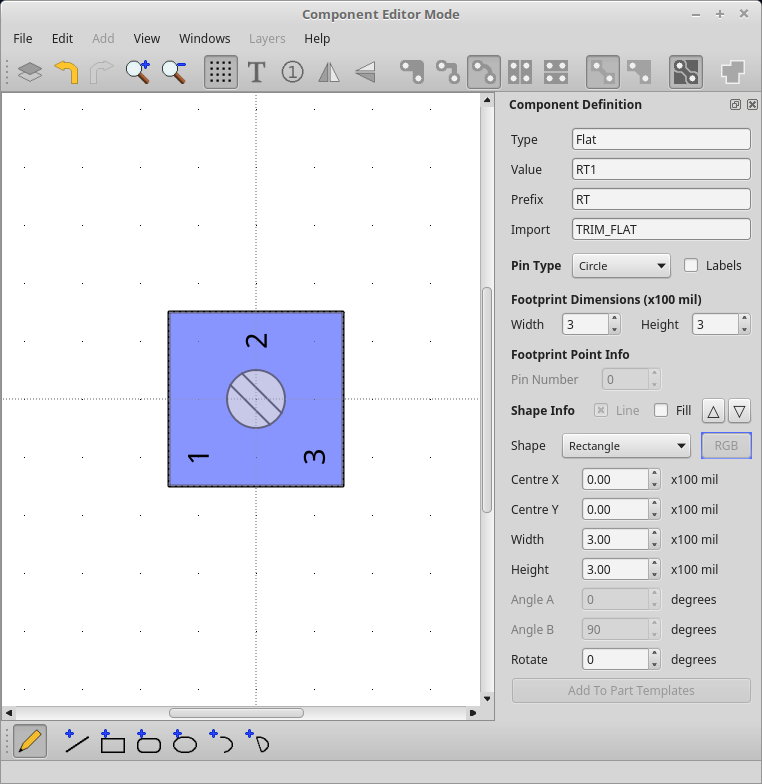

Component editor

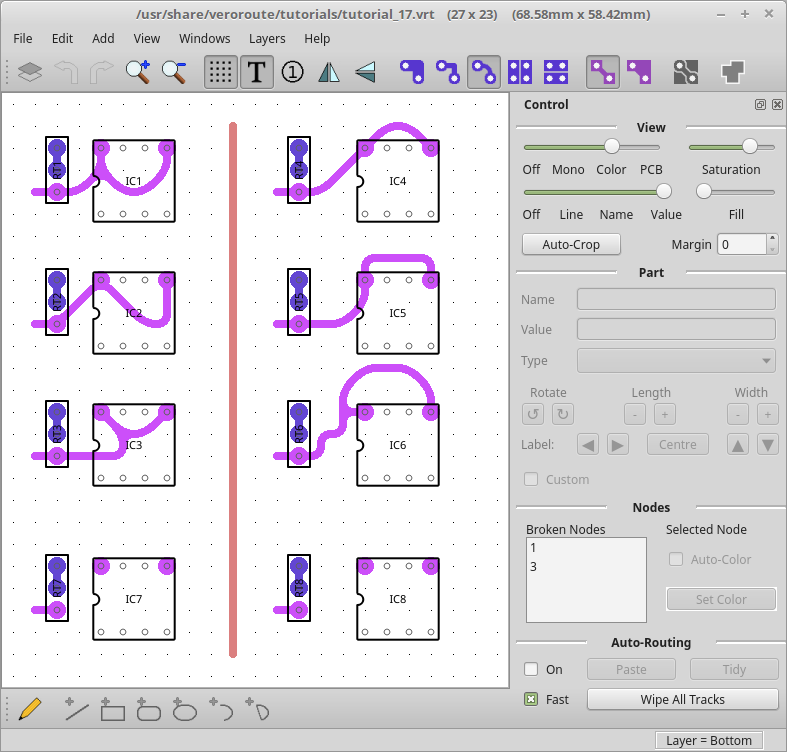

In-built tutorial


This download is for the Windows64bit version.
If you need the Windows 32bit version, download here.
If you need the Linux 64bit version, download here.



























Click here to visit the author's website.
Continue below for the main download link.


Downloads Views Developer Last Update Version Size Type Rank
2,913 4,511 Alex Lawrow <img src="https://www.oldergeeks.com/downloads/gallery/thumbs/VeroRoute2_th.png"border="0"> Feb 28, 2023 - 11:53 1.96 9.22MB ZIP 5/5, out of 36 Votes.
