USBDeview v3.07

A small utility that lists all USB devices that currently connected to your computer, as well as all USB devices that you previously used.

For each USB device, extended information is displayed: Device name/description, device type, serial number (for mass storage devices), the date/time that device was added, VendorID, ProductID, and more...
USBDeview also allows you to uninstall USB devices that you previously used, disconnect USB devices that are currently connected to your computer, as well as to disable and enable USB devices.
You can also use USBDeview on a remote computer, as long as you login to that computer with admin user.




License
This utility is released as freeware. You are allowed to freely distribute this utility via floppy disk, CD-ROM, Internet, or in any other way, as long as you don't charge anything for this. If you distribute this utility, you must include all files in the distribution package, without any modification.

Disclaimer
The software is provided "AS IS" without any warranty, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The author will not be liable for any special, incidental, consequential or indirect damages due to loss of data or any other reason.

System Requirement
This utility works on Windows 2000, Windows XP, Windows 2003, Windows Vista, Windows Server 2008, Windows 7, Windows 8, Windows 10, and Windows 11. Both 32-bit and 64-bit systems are supported. Windows 98/ME is not supported.

Known Issues
-In order to disable/enable USB items on x64 systems, you also must use the x64 version of USBDeview.
-The 'Created Date' column doesn't display correct values on Windows 7/8/Vista/2008.
-Some USB devices with bad driver may cause USBDeview to hang. In order to bypass this problem, you should turn off the 'Retrieve USB Power/Version Information' option:
USBDeview.exe /RetrieveUSBPower 0

Changes
v3.07
Fixed issue: When copying data to the clipboard or exporting to tab-delimited file, every line contained an empty field in the end of the line.
Added 'Sort By' toolbar button.

Using USBDeview
USBDeview doesn't require any installation process or additional DLL files. Just copy the executable file (USBDeview.exe) to any folder you like, and run it.

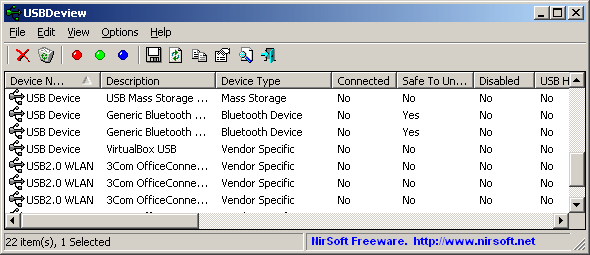

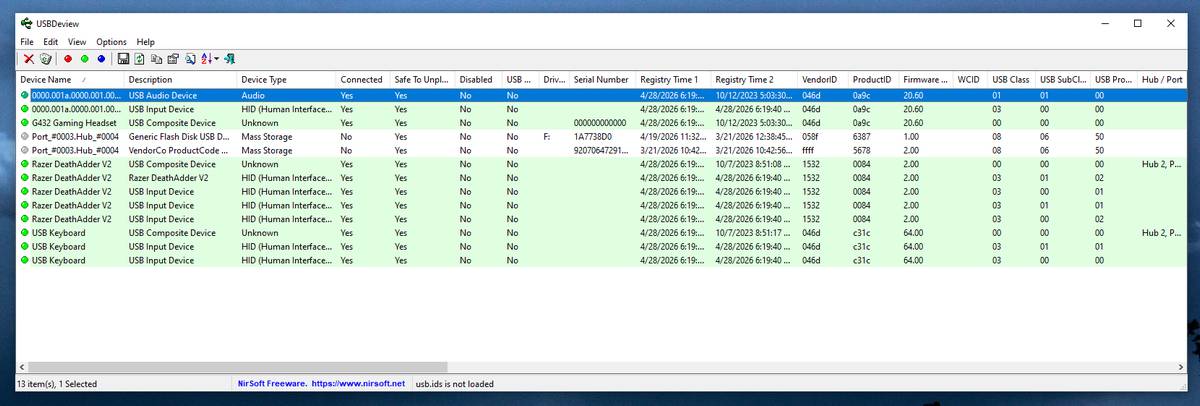

The main window of USBDeview displays all USB devices installed on your system. You can select one or more items, and then disconnect (unplug) them , uninstall them, or just save the information into text/xml/html file.

USBDeview Columns Description
  • Device Name: Specifies the device name. For some device, this column may display meaningless name, like "USB Device". If the device name is meaningless, try to look at the Description column.
  • Device Description: The description of the device.
  • Device Type: The device type, according to USB class code. For more information about USB classes: USB Class Codes.
  • Connected: Specifies whether the device is currently connected to your computer. If the device is connected, you can use the 'Disconnect Selected Devices' option (F9) to disconnect the device.
  • Safe To Unplug: Specifies whether it's safe to unplug the device from the USB plug without disconnecting it first. If the value of this column is false, and you want to unplug this device, you must first disconnect this device by using the 'Disconnect Selected Devices' option (F9) of USBDeview utility, or by using the 'Unplug or Eject Hardware' utility of Windows operating system.
  • Drive Letter: Specifies the drive letter of the USB device. This column is only relevant to USB flash memory devices and to USB CD/DVD drives. Be aware that USBDeview cannot detect drive letters of USB hard-disks.
  • Serial Number: Specifies the serial number of the device. This column is only relevant to mass storage devices (flash memory devices, CD/DVD drives, and USB hard-disks).
  • Registry Time 1: This date/time value is taken from the timestamp of the device Registry key. In many cases, this date/time value represents the time that you first plugged the device to the USB port. However, be aware that in some circumstances this value may be wrong. Also, On Windows 7, this value is initialized with the current date/time on every reboot.
  • Registry Time 2: This date/time value is taken from the timestamp of the device Registry key. On some systems this time values Specifies the last time that you plugged/unplugged the device. This date value is lost when you restart the computer.
  • VendorID/ProductID: Specifies the VendorID and ProductID of the device. For unofficial list of VendorID/ProductID, click here.
  • USB Class/Subclass/Protocol: Specifies the Class/Subclass/Protocol of the device according to USB specifications. For more information about USB classes: USB Class Codes.
  • Hub/Port: Specifies the hub number and port number that the device was plugged into. This value is empty for mass storage devices.
  • Install Time: Specifies the date/time when the USB device was installed. USBDeview can read this property only when you run it as Administrator. This property is stored under Properties\{83da6326-97a6-4088-9453-a1923f573b29} subkey, property number is 0064.
  • First Install Time: Specifies when the USB device was installed in the first time. USBDeview can read this property only when you run it as Administrator. This property is stored under Properties\{83da6326-97a6-4088-9453-a1923f573b29} subkey, property number is 0065.
  • Connect Time: Specifies the last time that the USB device was plugged. USBDeview can read this property only when you run it as Administrator. This property is available only on Windows 10/8. This property is stored under Properties\{83da6326-97a6-4088-9453-a1923f573b29} subkey, property number is 0066.
  • Disconnect Time: Specifies the last time that the USB device was unplugged. This property is available only on Windows 10/8. USBDeview can read this property only when you run it as Administrator. This property is stored under Properties\{83da6326-97a6-4088-9453-a1923f573b29} subkey, property number is 0067.


USBDeview Icons Legend
The device is not connected.
The device is connected. It's safe to physically unplug the device without disconnecting it.
The device is connected. You must disconnect the device from USBDeview or from Windows "Safely Remove Hardware" option before you physically unplug it.
The device is disabled.

'Vendor Name' And 'Product Name' Columns
Starting from version 1.35, you can view the vendor name and product name of your USB devices. In order to use this feature, you have to download the USB ID's list of Stephen J. Gowdy (http://www.linux-usb.org/usb.ids) and put the file in the same folder of USBDeview.exe
The name of the file must remain as 'usb.ids'.

Speed Test for USB Flash Drives
Starting from version 1.40, USBDeview allows you to test the read/write speed of your USB flash drive. The test is made by writing a large file (named $speed_test_nirsoft$.dat) into your USB flash drive, and then reading it back for testing the read speed. Be aware that you need at least 100 MB of free disk space in order to successfully make this speed test. Also, be aware that this test is made with sequential read and write operations. When using multiple small files, the read/write performances are usually much lower than sequential read/write.

In order to make a speed test to your flash drive, simply select the desired item in the main window, and then choose the 'Speed Test' option from the File menu, or press Ctrl+T. In the speed test window, verify that the selected drive letter is the right one, and then press the 'Start Test' button. Wait a few seconds until the write and read tests are finished.

Publishing Your Speed Test Result
If you want to share your speed test results, so other people that want to purchase a USB flash drive will be able to easily compare the speed of different flash drives, you can use the 'Publish Test Result' option to do that.

When you successfully finish a speed test, the 'Publish Test Result' button is automatically enabled. Clicking this button opens a new window that displays all the data that will be sent to https://usbspeed.nirsoft.net/ Web site, and ask you the confirm the speed test publishing. Be aware that only the data displayed in this window is transmitted to https://usbspeed.nirsoft.net/ Web site. USBDeview doesn't send the serial number of your USB device or any other information that may violate your privacy.

AutoPlay
Starting from version 1.10, USBDeview allows you to automatically run a file on USB flash memory devices, according to AutoRun.inf filename. You can manually activate the AutoPlay feature by selecting the desired device and pressing F8. Alternatively, You can check the "AutoPlay When Device Is Connected" option, and then the AutoPlay feature will be automatically activated when you insert a USB flash memory device.
Be aware that this feature only works if USBDeview detects the drive letter of the device.

Execute a command when you insert a USB device
Starting from version 1.10, USBDeview allows you to execute a command from exe/cmd/bat file in every time that insert a USB device to your system. In order to use this feature, go to 'Options->Advanced Options', select the 'Execute..' check-box, and type the exe/cmd file that you want to run. You can also use the following special variables in this command string: %device_name%, %device_desc%, %drive%, %serial_number%, %vid%, %pid%, %vid_hex%, %pid_hex% , %device_type%, %service_name%, %device_class%, %device_mfg%
USBDeview will automatically replace these variables with the appropriate data of the device that you inserted. For example, if you want to pass to your exe file 2 parameters - the serial number of the device, and the drive letter:
c:\temp\test.exe "%serial_number%" "%drive%"

Known Limitations/Issues
  • For all devices except 'Mass Storage' Devices: If you plug a device to one USB port, and then you plug the same device to another USB port, a new record of the same device will be created for each USB port that you plug. So if you see multiple lines for exactly the same device, it means that you plugged it to different USB ports. The USB ports that you plugged are specified in 'Hub/Port' column.
    However, for 'Mass Storage' device, only one record is created for each device, even if you plug it to different USB port.
  • When a USB device is added/removed on your local computer, USBDeview utility automatically updates the list of USB devices.
    But... If you USBDeview is connected to a remote computer, the list won't refresh automatically when a device is added or removed. You must refresh it manually, by pressing F5 key.


Connecting To Remote Computer
The following command-line options allows you to connect to remote computers. You must login to the remote computer with admin user in order to use these options.

/remote <\\Computer Name>
Allows you to connect a single remote computer.
For Example:
USBDeview.exe /remote \\MyComp
/remotefile <Computers List File>
Allows you to connect multiple computers, and view all their USB activity in one window. The computers list file should be a simple Ascii text file with computer names separated by colon, semicolon, space, tab characters or CRLF.
For Example:
USBDeview.exe /remotefile "c:\temp\comp.txt"

In order to successfully get full admin access to the remote computer, read this Blog post: How to connect a remote Windows 7/Vista/XP computer with NirSoft utilities.

Connecting To external SYSTEM registry file
If you have the 'SYSTEM' registry file of external operating system, you can use the following command-line option to read the USB devices list from it:
/regfile <SYSTEM Registry File>

For Example:
USBDeview.exe /regfile "c:\temp
egfiles\SYSTEM"
USBDeview.exe /regfile "d:\windows\system32\config\SYSTEM"

This option has some limitations:

You cannot read a Registry file of Windows XP/2003/Vista from Windows 2000 Machine.
USBDeview works in read-only mode. (You cannot uninstall a device from external file)

Stop/Disconnect Command-Line Options
/stop {/showmsg} {\\RemoteComputer} <Device Name>
Stop/disconnect a USB device by specifying its name or description.
You don't have to specify the whole name or description. You can also specify only a part of the name or description string, and USBDeview will identify it. For example, If the device name is 'Kingston DataTraveler 2.0', you can simply put 'kingston' or 'DataTraveler' in the device name parameter, and USBDeview will disconnect the right device. You can also specify the instance ID string of the device.
If you want that a message/balloon will be displayed after the device is disconnected, add the '/showmsg' parameter. (Windows 2000 displays a message-box, Windows XP displays a balloon)
If you want to disconnect a device in a remote computer, specify the remote computer name, with \\ prefix. You must login to the remote computer with admin rights in order to do that.
Examples:
USBDeview.exe /stop /showmsg "DVD RW"
USBDeview.exe /stop "DataTraveler"
USBDeview.exe /stop \\comp01 "SanDisk Cruzer"
USBDeview.exe /stop "USB\Vid_1058&amp;Pid_1023\8539583490834690"

/stop_by_serial {/showmsg} {\\RemoteComputer} <Device Serial>
Similar to /stop command, but instead of specifying a device name, you should specify the serial number of the device. Works only with mass storage devices.
Examples:
USBDeview.exe /stop_by_serial ea051261
USBDeview.exe /stop_by_serial /showmsg 876534513

/stop_by_drive {/showmsg} {\\RemoteComputer} <Drive Letter>
Stop/disconnect a USB device by specifying its drive letter. Works only with USB flash drives and CD/DVD devices.
Examples:
USBDeview.exe /stop_by_drive g:
USBDeview.exe /stop_by_drive /showmsg f:
USBDeview.exe /stop_by_drive /showmsg \\comp02 t:

/stop_by_class {/showmsg} {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
Stop/disconnect a USB device by specifying the class/subclass/protocol combination.
For example, if you want to stop all 'Mass Storage' devices, you should specify the following class/subclass/protocol combination: 08;06;50
Examples:
USBDeview.exe /stop_by_class /showmsg 08;06;50
USBDeview.exe /stop_by_class 03;01;02

/stop_by_pid {/showmsg} {\\RemoteComputer} <VendorID;ProductID>
Stop/disconnect a USB device by specifying the VendorID/ProductID. You can specify only the VendorID if you want to disconnect all devices with that VendorID.
Examples:
USBDeview.exe /stop_by_pid /showmsg 13fe;1a00
USBDeview.exe /stop_by_pid 04f9

/stop_all {/showmsg} {\\RemoteComputer}
Stop/disconnect all USB devices currently connected to your computer.

Disable/Enable/Remove Command-Line Options
Starting from version 1.20, you can also use the following commands to disable, enable or remove USB devices from command-line:

/disable {\\RemoteComputer} <Device Name>
/disable_by_serial {\\RemoteComputer} <Device Serial>
/disable_by_drive {\\RemoteComputer} <Drive Letter>
/disable_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/disable_by_pid {\\RemoteComputer} <VendorID;ProductID>
/disable_all {\\RemoteComputer}
/enable {\\RemoteComputer} <Device Name>
/enable_by_serial {\\RemoteComputer} <Device Serial>
/enable_by_drive {\\RemoteComputer} <Drive Letter>
/enable_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/enable_by_pid {\\RemoteComputer} <VendorID;ProductID>
/enable_all {\\RemoteComputer}
/disable_enable {\\RemoteComputer} <Device Name>
/disable_enable_by_serial {\\RemoteComputer} <Device Serial>
/disable_enable_by_drive {\\RemoteComputer} <Drive Letter>
/disable_enable_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/disable_enable_by_pid {\\RemoteComputer} <VendorID;ProductID>
/disable_enable_all {\\RemoteComputer}
/remove {\\RemoteComputer} <Device Name>
/remove_by_serial {\\RemoteComputer} <Device Serial>
/remove_by_drive {\\RemoteComputer} <Drive Letter>
/remove_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/remove_by_pid {\\RemoteComputer} <VendorID;ProductID>
/remove_all {\\RemoteComputer}
/remove_all_connected - Remove all connected USB devices.
/remove_all_disconnected - Remove all disconnected USB devices.

Disable, enable and remove actions require elevation ('Run As Administrator'). You can use the above command-line options with elevation by adding /RunAsAdmin to the command, for example:
USBDeview.exe /RunAsAdmin /disable "USB\Vid_1058&amp;Pid_1023\8539583490834690"

Check if a device is connected/disconnected or enabled/disabled
Starting from version 2.70, you can check whether a device is connected/disconnected or enabled/disabled by using the following command-line options:

/is_connected {\\RemoteComputer} <Device Name>
/is_connected_by_serial {\\RemoteComputer} <Device Serial>
/is_connected_by_drive {\\RemoteComputer} <Drive Letter>
/is_connected_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/is_connected_by_pid {\\RemoteComputer} <VendorID;ProductID>
/is_disabled {\\RemoteComputer} <Device Name>
/is_disabled_by_serial {\\RemoteComputer} <Device Serial>
/is_disabled_by_drive {\\RemoteComputer} <Drive Letter>
/is_disabled_by_class {\\RemoteComputer} <USB Class;USB SubClass;USB Protocol>
/is_disabled_by_pid {\\RemoteComputer} <VendorID;ProductID>

When using the above commands, USBDeview returns the number of disabled or connected devices that match the specified string.
For example, the following batch file will display 1 if the device with serial number 7538957348957398 is connected or 0 if the device is not connected:
USBDeview.exe /is_connected_by_serial "7538957348957398"
echo %ERRORLEVEL%

Save Command-Line Options
/stext <Filename> Save the list of all USB devices into a regular text file.
/stab <Filename> Save the list of all USB devices into a tab-delimited text file.
/scomma <Filename> Save the list of all USB devices into a comma-delimited text file.
/stabular <Filename> Save the list of all USB devices into a tabular text file.
/shtml <Filename> Save the list of all USB devices into HTML file (Horizontal).
/sverhtml <Filename> Save the list of all USB devices into HTML file (Vertical).
/sxml <Filename> Save the list of all USB devices to XML file.
/sort <column> This command-line option can be used with other save options for sorting by the desired column. If you don't specify this option, the list is sorted according to the last sort that you made from the user interface. The <column> parameter can specify the column index (0 for the first column, 1 for the second column, and so on) or the name of the column, like "Device Name" and "Description". You can specify the '~' prefix character (e.g: "~Description") if you want to sort in descending order. You can put multiple /sort in the command-line if you want to sort by multiple columns.

Examples:
USBDeview.exe /shtml "f:\temp\usb-list.html" /sort 2 /sort ~1
USBDeview.exe /shtml "f:\temp\usb-list.html" /sort "Device Type" /sort "Device Name"
/nosort When you specify this command-line option, the list will be saved without any sorting.
/DisplayDisconnected <0 | 1> Specifies whether to show disconnected devices. 0 = No, 1 = Yes.
/DisplayNoPortSerial <0 | 1> Specifies whether to show devices without port/serial number. 0 = No, 1 = Yes.
/DisplayNoDriver <0 | 1> Specifies whether to show devices without driver. 0 = No, 1 = Yes.
/DisplayHubs <0 | 1> Specifies whether to show USB hubs. 0 = No, 1 = Yes.
/RetrieveUSBPower <0 | 1> Specifies whether to retrieve USB power/version information.
/MarkConnectedDevices <0 | 1> Specifies whether to mark connected devices.
/TrayIcon <0 | 1> Specifies whether to start USBDeview with a tray icon.
/AddExportHeaderLine <0 | 1> Specifies whether to add header line when exporting the USB information to csv/tab-delimited file.
/cfg <Filename> Start USBDeview with the specified configuration file. For example:
USBDeview.exe /cfg "c:\config\udv.cfg"
USBDeview.exe /cfg "%AppData%\USBDeview.cfg"

Translating USBDeview to other languages
In order to translate USBDeview to other language, follow the instructions below:

Run USBDeview with /savelangfile parameter:
USBDeview.exe /savelangfile
A file named USBDeview_lng.ini will be created in the folder of USBDeview utility.
Open the created language file in Notepad or in any other text editor.
Translate all string entries to the desired language. Optionally, you can also add your name and/or a link to your Web site. (TranslatorName and TranslatorURL values) If you add this information, it'll be used in the 'About' window.
After you finish the translation, Run USBDeview, and all translated strings will be loaded from the language file.
If you want to run USBDeview without the translation, simply rename the language file, or move it to another folder.

Feedback
If you have any problem, suggestion, comment, or you found a bug in this utility, you can send a message to nirsofer@yahoo.com








This download is for the 64bit version. If you need the 32bit version, download here.


Click here to visit the author's website.
Continue below for the main download link.


Downloads Views Developer Last Update Version Size Type Rank
9,152 18,896 Nir Sofer <img src="https://www.oldergeeks.com/downloads/gallery/thumbs/usbdeview_th.png"border="0"> Feb 20, 2024 - 12:50 3.07 124KB ZIP 5/5, out of 40 Votes.
File Tags
USBDeview  v3.07

Ope! Hold on, Speedy.
You gotta read this before you download below:

There are no ads, no fake download buttons and no crapware here.
This website has lived for 16 years solely through donations.
You can download without donating but we use the "Honor System"
here in the Ozarks. If your momma raised you to be honorable,
make your donation to keep things running.
Your momma would be so proud!

Thank you! -Randy & Deanna (The Older Geeks)
Missouri Ozarks, USA

Monthly operating costs = $750
Donations cover operating costs first
then are set aside for future upgrades and/or
handed-over to Deanna for new shoes.

PayPal or Credit/Debit
IMPORTANT: This donation will show up as Home Computer Repair on your bank statement.
Or

Or

Or
Send a check payable to Home Computer Repair LLC, 208 E. Water St. Mount Vernon, MO 65712

Recent Super Donors ($50+)
Thanks, Stephen
Thanks, Christopher
Thanks, William
Thanks, Janet

Recent Donors
Thanks, Richard
Thanks, James
Thanks, Eric
Thanks, John
Thanks, Patrick
Thanks, Tim
Thanks, Richard
Thanks, Brian
Thanks, Robert
Thanks, C. David

→ Download Your File ←


Click to Rate File     Share it on Twitter →


OlderGeeks.com Copyright (c) 2024
