Pencil v3.1.0

An open-source GUI prototyping tool.

Pencil is built for the purpose of providing a free and open-source GUI prototyping tool that people can easily install and use to create mockups in popular desktop platforms.

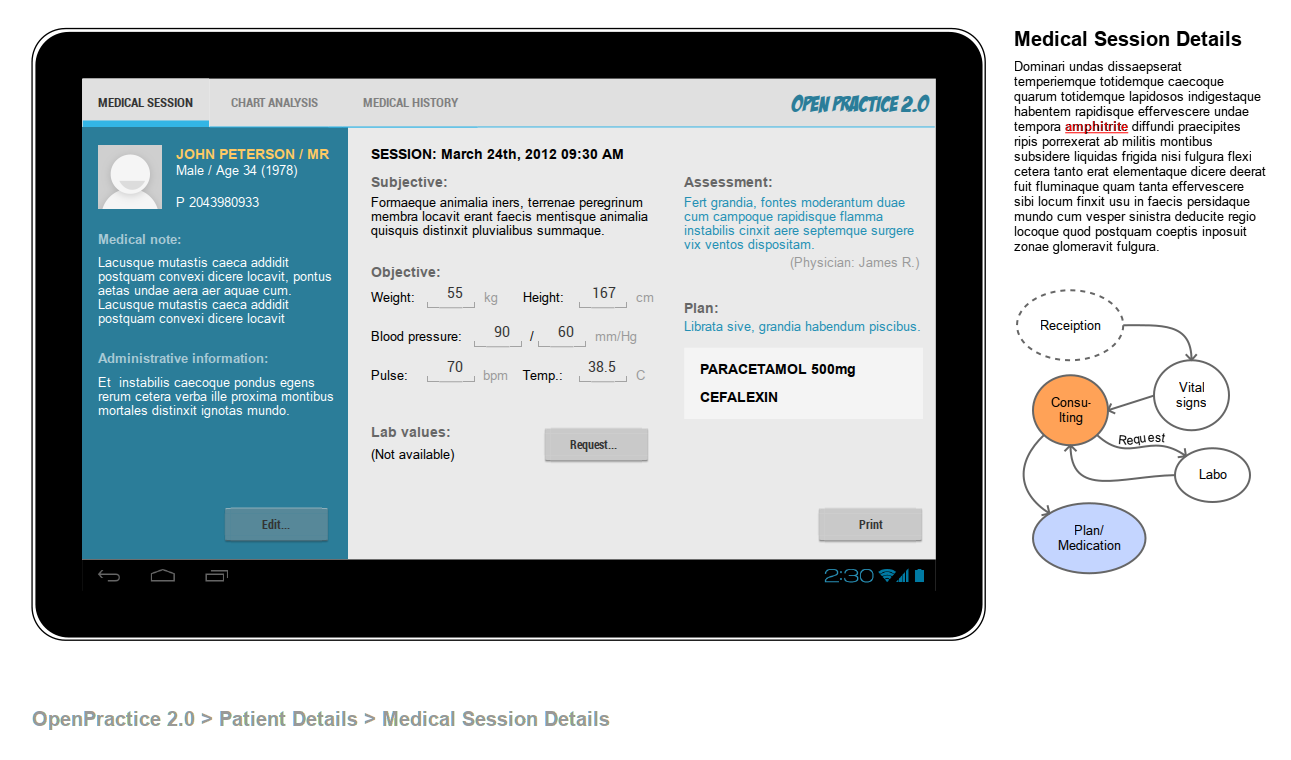

Easy GUI Prototyping

Pencil provides various built-in shapes collection for drawing different types of user interface ranging from desktop to mobile platforms. Starting from 2.0.2, Pencil is shipped with Android and iOS UI stencils pre-installed. This makes it even easier to start protyping apps with a simple installation.

Popular drawing features are also implemented in Pencil to simplify the drawing operations.

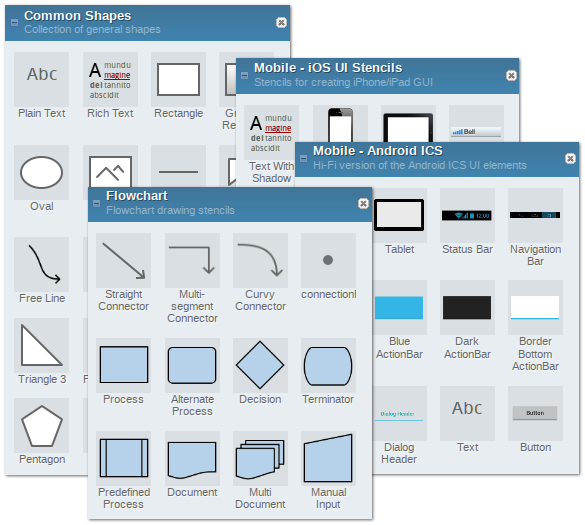

Built-in Shape Collections

Starting from 2.0.2 Pencil has even more shape collections included by default. The list of built-in collections now includes general-purpose shapes, flowchart elements, desktop/web UI shapes, Android and iOS GUI shapes.

There are also many other collections created by the community and are distributed freely on the Internet. You can easily grab a collection and install it into Pencil with a simple drag-and-drop operation.

Some of the stencil collections that you can try are collected in the download archive.

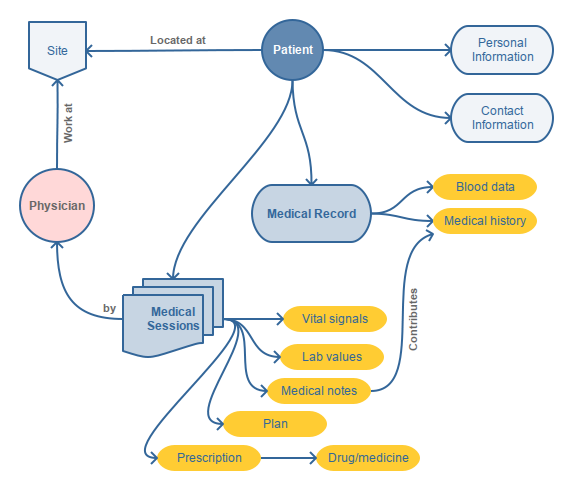

Diagram Drawing Support

Pencil now supports connectors which can be used to "wire" shapes together in a diagram. A collection of flowchart shapes are also available for drawing diagrams.

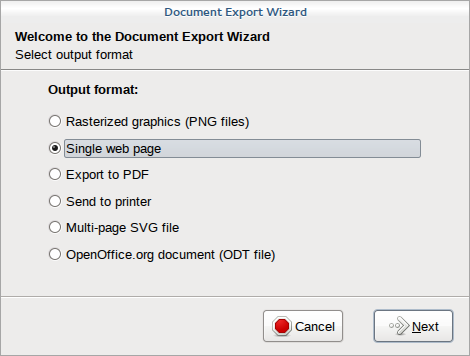

Exporting to Different Output Formats

Pencil supports outputing the drawing document into different types of formats. You can have your drawing exported as a set of rasterized PNG files or as a web page that can be delivered to the viewers.

Pencil also supports exporting documents into popular formats including OpenOffice/LibreOffice text documents, Inkscape SVG and Adobe PDF.

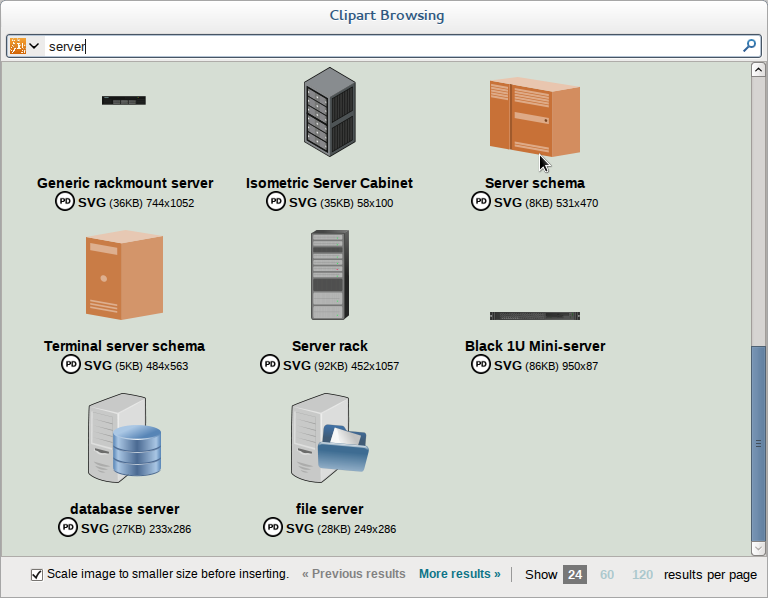

Easily Find Cliparts from the Internet

Pencil has a clipart browser tool that integrates with OpenClipart.org to let users easily find cliparts by keywords and added them into the drawing by a simple drag-and-drop operation.

Clipart listed by the tool are in vector format and hence good for users in scaling to appropriate sizes.

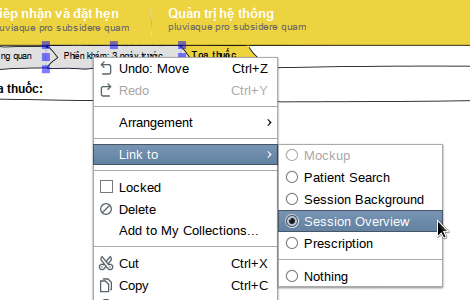

Inter-page linking

Elements in a drawing can be linked to a specific page in the same document. This helps user define the UI flow when creating application or website mockups.

Linkings defined in a document are converted into HTML hyper-links when the document is exported into web format. This process creates an interactive version of the mockup in which viewers can see a simulated flow when clicking on the UI elements.






Changes:
v3.1.0
Support for compact layout
Optimize output file by removing unused/gabbage resources
Add copy page bitmap to clipboard
Add screencapture and color picker
Implement quick canvas resizing using corner resizer
Add support for line-height in font property
Fix dialog API and script editor
Automatically show "Launch script editor" for special plain text properties
Enhance connector invalidation code to improve keyboard moving performance
Add support for built-in private collection embedded inside stencil collection
Fix problem when pasting shapes are out of the current view-port
Change default page size for new page as best-fit
Fix broken bitmap and svg image embedded in private shape collection
Add support for shadow color in stencil generated from stencil builder
Fix shape preparing bug that make background bitmap generation failed.
Normalize calculated values from group sizing policy to int to avoid blurry edges
Enhance snapping performance and support snapping when moving multiple shapes
Allow range-selection from canvas scrollpane, clear selection when clicking outside canvas.
Support horizontal/vertical only moving using ctrl key
Fix #297 - handling for command line argument
Fix dialog sizing and style that cause long dialogs
Showing actual file path or the installed collection in its about dialog
Fix duplication of system collection loading
Showing edge border in collection pane to indicate user-installed collections
Fix handling of file argumennt whens starting Pencil in developer mode
Fix crash caused by unzip2 and easy-zip2
Use Electron 6.0.1 (Node 12, Chrome 76)
Fix character encoding in PDF export
Fix #227 Printing more than once Hangs on "Exporting" screen
Improving property editor side pane
Fix Page detail menu and dialog: move "Properties" to the end, automatically focus and select title input.
Add "Insert Screenshot..." menu action for canvas, replacing the startup screen button.
Implement native MAC capture service
Add option to insert screenshot as n-patch image
Cleanup parsererror message in output PDF/print
Add support for copy selection to clipboard as bitmap when holding "shift" key.
Initial impl for checking missing resources
Fix file missing bug in stencil builder
Fix wrong file filter when corespodent collection is not installed
Fix large image captured in HiDPI screen
Update "Edit Image..." into using external editor
Stop using local version of Material Design Icons which may cause problem in some Linux systems with chinese locale
Fix losing of n-patch bitmap image after reloading, add offscreen validation support for n-patch behavior
Add clickable prototype HTML export template
Add multi repo view for stencil repo browser
Add deploy tool for stencil builder
Add page property to allow copying of background page links
Add export scale and clickable PDF export
Fix child pages ordering not saved
Fix performance problem caused by timer leaking in color selector
Add support for document color palette in color pickers









This download is for the Windows 64bit version. All other download assets are below:


Windows:
pencil-3.1.0.ga-i386.exe

MacOS:
Pencil-3.1.0.ga.dmg

Linux:
pencil_3.1.0.ga_amd64.deb
pencil_3.1.0.ga_i386.deb
pencil-3.1.0.ga-1.x86_64.rpm
pencil-3.1.0.ga-1.i386.rpm
