 Home » OlderGeeks.com Freeware Downloads » Video/Audio Editing, Tools and Players » Utilities, Converters and Players » Friture v0.49
File - Download Friture v0.49
Description

Always scroll to the bottom of the page for the main download link.
We don't believe in fake/misleading download buttons and tricks. The link is always in the same place.


Friture v0.49

A free, open source, real-time audio analyzer.




Features

The purpose of Friture is to help analyze an audio signal to understand the characteristics of this signal (fundamental, harmonics, feedback, etc.), to describe the source/room/receiver behaviour (reverberation, gain peaks, etc.), or to make adjustments in the preprocessing (room equalization). This is achieved by providing a set of widgets to visualize audio data:

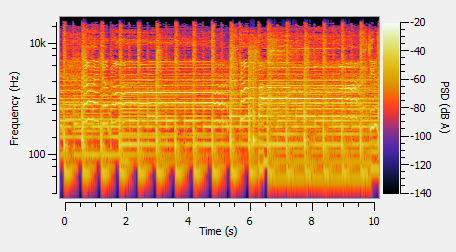

2D Spectrogram widget
The 2D spectrogram widget displays audio data versus both frequency and time, in a rolling-against-time fashion. The time-frequency resolution of the display is fixed by the window length of the Fourier transform (as for the minimum response time of the spectrum widget). It is also limited by the resolution of your display in pixels.

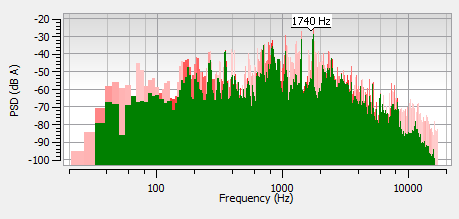

Spectrum widget
The spectrum widget displays audio data versus frequency. This is very appropriate to visualize the characteristics of tha signal: fundamental frequency, harmonics, feedback frequencies, etc.

The response time of the display is configurable. The minimum response time is linked to the window length of the Fourier transform. For a FFT of 1024 points, and given the sampling rate of 48000 Hz used by Friture, the minimum response time is 1024/48000 = 21.3 ms.

Additionally, the widget draws peaks for each frequency component. These peaks mark the recent maxima of the spectrum, and start to decrease shortly after the peak was reached. Finally, a label identifies the frequency of the global maximum of the spectrum.

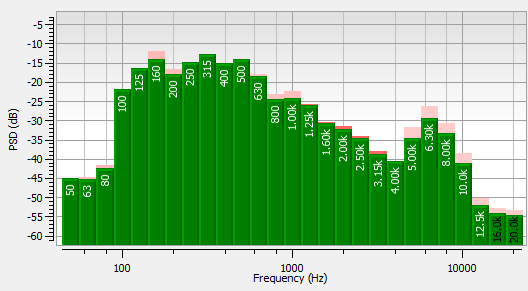

Octave Spectrum widget
The octave spectrum widget displays audio data versus time, similarly to the Spectrum widget. Audio data is grouped in frequency bins with fraction-of-octave widths. Each frequency bin is the result of a fraction-of-octave filter.

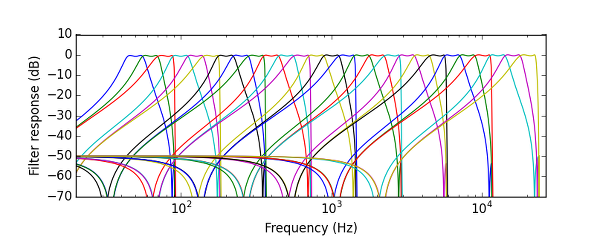

The following figure illustrates the frequency response of the filter bank used with the 3 bands-per-octave setting. The filters for each octave are applied after decimations of the signal. Both the band-pass filters and the low-pass decimation filters are implemented as elliptic IIR filters. The -3dB width of each filter is constant on a logarithmic frequency scale.






Delay estimator
The delay estimator widget computes the time delay between the 2 input channels. This is useful to align speakers in a room.

The delay estimation is achieved using a cross-correlation algorithm. It only works when the 2-channel mode is enabled.






Level widget
The level widget displays peak power (25 ms response time, i.e. instantaneous) and RMS power (300 ms response time) in dBFS (dB Full Scale). When the 2-channels mode is enabled, it displays the levels of each channel on a separate scale.

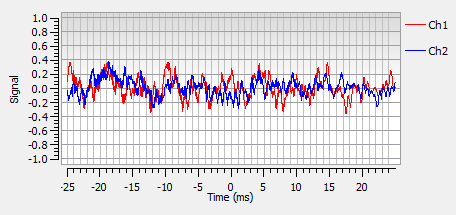

Scope widget
The scope widget displays audio data versus time. The time scale is configurable. The display is synchronized with regards to a leading-edge of the signal positioned in the center of the time axis, as a traditional scope would do.







This download is for the Windows version.
If you need the macOS version, download here.
If you need the Linux version, download here.



Click here to visit the author's website.
Continue below for the main download link.


Downloads Views Developer Last Update Version Size Type Rank
228 1,055 Timothée Lecomte <img src="https://www.oldergeeks.com/downloads/gallery/thumbs/friture1_th.png"border="0"> Sep 26, 2023 - 12:02 0.49 61.17MB MSI 5/5, out of 2 Votes.
File Tags
Friture  v0.49
