 Home » Freeware Downloads » Data Recovery » HxD v2.3.0.0
File - Download HxD v2.3.0.0

FYI, always scroll to the bottom of the page to download files on
We don't believe in fake/misleading download buttons and tricks. The link is always in the same place.

HxD v2.3.0.0

Freeware Hex Editor and Disk Editor.

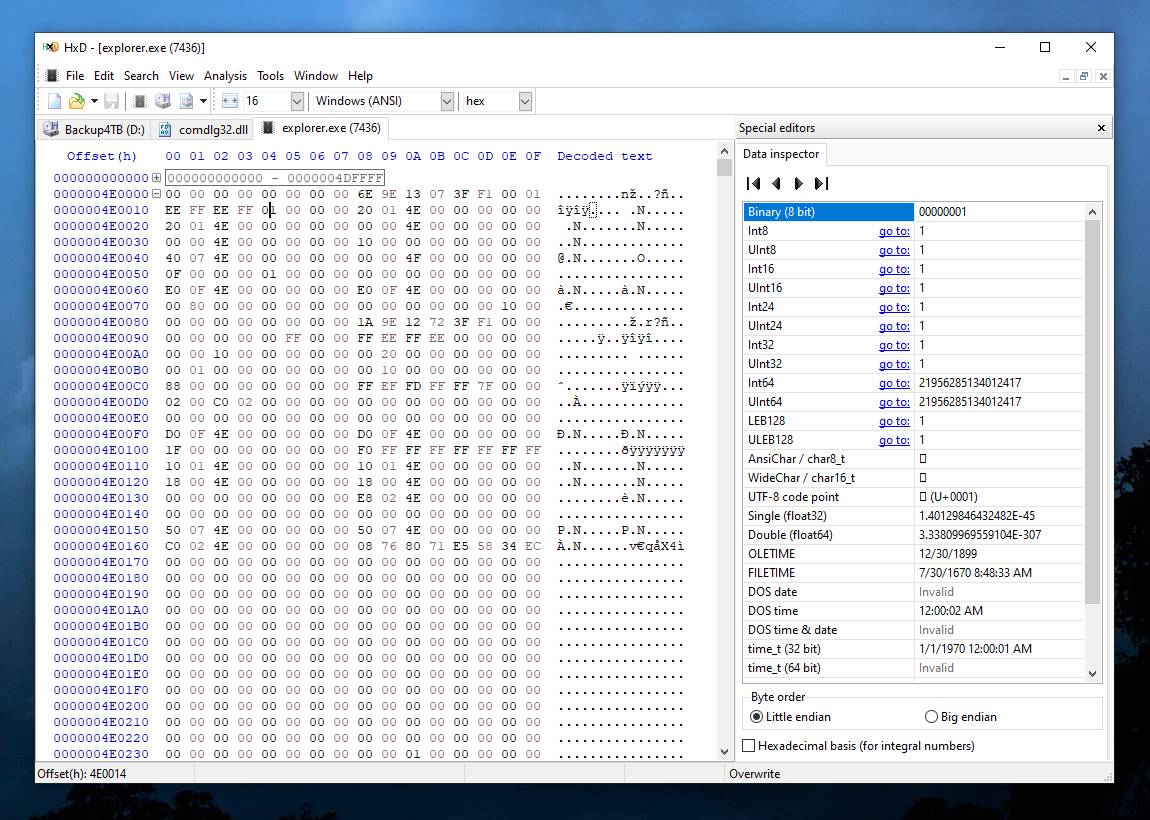

HxD is a carefully designed and fast hex editor which, additionally to raw disk editing and modifying of main memory (RAM), handles files of any size.

The easy to use interface offers features such as searching and replacing, exporting, checksums/digests, insertion of byte patterns, a file shredder, concatenation or splitting of files, statistics and much more.

Editing works like in a text editor with a focus on a simple and task-oriented operation, as such functions were streamlined to hide differences that are purely technical.
For example, drives and memory are presented similar to a file and are shown as a whole, in contrast to a sector/region-limited view that cuts off data which potentially belongs together. Drives and memory can be edited the same way as a regular file including support for undo. In addition memory-sections define a foldable region and inaccessible sections are hidden by default.

Furthermore a lot of effort was put into making operations fast and efficient, instead of forcing you to use specialized functions for technical reasons or arbitrarily limiting file sizes. This includes a responsive interface and progress indicators for lengthy operations.


Available as a portable and installable edition
To edit the main memory
Memory sections are tagged with data-folds
Disk-Editor (Hard disks, floppy disks, ZIP-disks, USB flash drives, CDs, ...)
RAW reading and writing of disks and drives
for Win9x, WinNT and higher
Instant opening regardless of file-size
Up to 8EB; opening and editing is very fast
Liberal but safe file sharing with other programs
Flexible and fast searching/replacing for several data types
Data types: text (including Unicode), hex-values, integers and floats
Search direction: Forward, Backwards, All (starting from the beginning)
File compare (simple)
View data in Ansi, DOS, EBCDIC and Macintosh character sets
Checksum-Generator: Checksum, CRCs, Custom CRC, SHA-1, SHA-512, MD5, ...
Exporting of data to several formats
Source code (Pascal, C, Java, C#, VB.NET)
Formatted output (plain text, HTML, Richtext, TeX)
Hex files (Intel HEX, Motorola S-record)
Insertion of byte patterns
File tools
File shredder for safe file deletion
Splitting or concatenating of files
Basic data analysis (statistics)
Graphical representation of the byte/character distribution
Helps to identify the data type of a selection
Byte grouping
1, 2, 4, 8 or 16 bytes packed together into one column
"Hex only" or "text only"-modes
Progress-window for lengthy operations
Shows the remaining time
Button to cancel
Modified data is highlighted
Unlimited undo
"Find updates..."-function
Easy to use and modern interface
Goto address
Overwrite or insert mode
Cut, copy, paste insert, paste write
Clipboard support for other hex editors
Visual Studio/Visual C++, WinHex, HexWorkshop, ...
Ctrl+Shift+Number (0-9) sets a bookmark
Ctrl+Number (0-9) goes to a bookmark
Navigating to nibbles with Ctrl+Left or Ctrl+Right
Flicker free display and fast drawing

For: Windows XP, 2003, Vista, 7, 8 or 10

Changes: (July 6, 2019)

New: open source plugin interface to extend the data inspector
supports dll plugins made in C, C++, Delphi or any other language which can deal with a C-like interface
includes example plugins
New: array navigation toolbar in datainspector (next/previous/first/last element)
allows to navigate types like ad-hoc arrays, that span the entire stream / file, extending left and right from the current element shown in the datainspector
all fixed-width data types support navigating forwards and backwards by default
backward navigation needs special support for variable-width data types like UTF-8
since UTF-8 is self-synchronizing, determining the previous element is possible (however, x86 assembly, for example, cannot be supported, since trailing bytes in an instruction encoding can also appear as leading bytes, which therefore only allows for an unambigious forward scan)
New: unintrusive pointer type support in data inspector
clickable goto link, which is right aligned next to integer type name
implicitly treats integer types as pointers / addresses / offsets
signed integers are treated as relative offsets, unsigned integers as absolute offsets
avoids cluttering the UI with many more rows by having each integer row have a dual function (acting as pointer as well as plain integer)
typed pointers and pointers that use complex adressing schemes (such as using a lookup table, or computing of an address based on parameters instead of a simple immediate value), will follow with structure views
New: added Int24 and UInt24 types to data inspector (useful for wav files)
be sure to reset the data inspector row order in the options, if new types appear in the last rows
New: separate portable and installable versions (also reduces number of wizard pages)
portable setup runs with least privileges
portable setup defaults to desktop folder
Enhancement: reduce flickering in data inspector when resizing or during fast selection, especially for the text box
Enhancement: unfold a section if a goto command jumps into it
Enhancement: implemented new TXmTabControl to enable Ctrl+(Shift+)Tab navigation in Search and Replace windows
behaves like native TPageControls from Delphi (native TTabControls do not support keyboard shortcuts for tab switching)
allows focusing the tabs itself to allow navigating with Left/Right arrow keys, yet still focuses the first child control when switching tabs, as required
Enhancement: edit controls in block selection windows only validate the entry on losing focus
allows for more flexible editing and temporarily invalid states
Change: for more consistency in error messages, the goto dialog always displays the computed target offset, instead of the text in the offset text box (which can contain absolute or relative offsets)
Change: rename optical disk to optical disc (used disk for consistency in the past, but disc is just more common)
Change: turn all http links into https ones

Fix: data inspector ignores leading and trailing whitespace where not relevant to the data type (e.g., removing for integers, but keeping for character types)
Fix: always treat integers as unsigned when displaying them in hexadecimal
Fix: physical floppy disk drives would show a too small size (limited like the logical ones)
Fix: writing to floppy disks could fail, because they did not get locked and unmounted
Fix: make the height of the bottom dock normal size again (it would appear too small, making people believe no results are produced, for example when generating checksums)
Fix: data inspector: when data name column was too small, the splitter could be overdrawn / interrupted with white space
Fix: properly handle https URLs by passing INTERNET_FLAG_SECURE and do not fail on redirects from http to https
Fix: Setup would choose English by default, instead of picking the language based on the OS's locale
Fix: tab order in various windows (search and replace, and the option frames for each); correct tab order even if option frames are not shown for a certain data type
Fix: ensure tab switching with Ctrl+(Shift+)Tab keeps working after a switch, by setting the focus to the first control inside the tab each time a tab switch occurs
Fix: selections would unfold sections even if unnecessary

Other smaller fixes, many internal enhancements and refactorings
Lots of work on UTF-8 and handling grapheme cluster boundaries for future UTF-8 support in the hex editing window itself, see
details of the general UTF-8 support design:
New translations:
Dutch - Jaap Kramer
Japanese - Airumu
Turkish - Koray Duman

Click here to visit the author's website.
Continue below to download this file.

Downloads Views Developer Last Update Version Size Type Rank
1,579 4,432 Maël Hörz <img src=""border="0"> Jul 08, 2019 - 10:21 3.04MB ZIP 5/5, out of 18 Votes.
