RAMMon V1.1 (Build 1001)

RAMMon is an easy to use Windows based application that allows users to quickly retrieve the Serial Presence Detect (SPD) data from their RAM modules. It will allow users to identify a multitude of attributes, of which, includes the manufacturer, the clockspeed and other data of their DDR2, DDR3, DDR4, XMP and EPP memory devices and even some older memory types. It uses SysInfo DLL SDK to gather the SPD attributes from RAM devices. This information provides a snapshot of the available data for each RAM module installed on the system.

What is SPD?
Serial Presence Detect (SPD) is the standard set forth by JEDEC for a host system to retrieve attributes of memory modules. The SPD standard is intended for use on any memory module, independent of memory technology or module form factor.

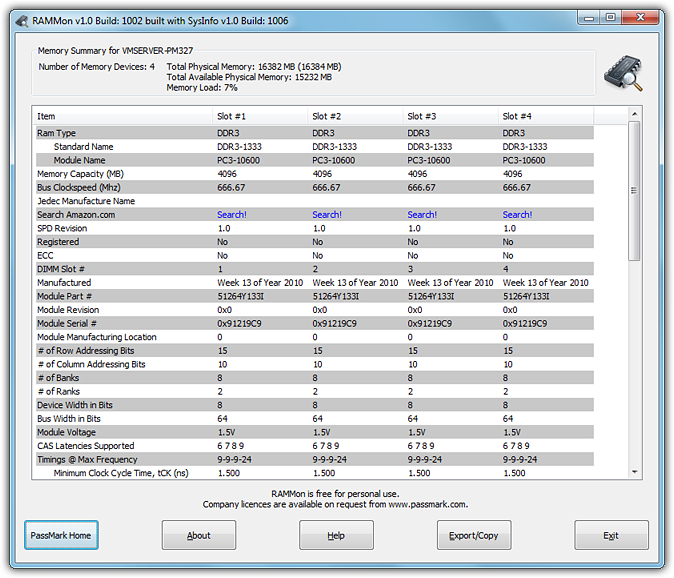

RAMMon displays the values stored on RAM module such as the memory capacity, the manufactuer, serial number, model part number, the CAS latencies supported and the module voltage.

Also, depending on your RAM type, other specific SPD data can be retreived as well. Such as the module thickness, module width, maximum operating temperature and more.

Supported Hardware

While testing has been performed on approximately 20 different motherboard chipsets, we believe the following chipsets should work without any problem. Should you encounter a chipset that doesn't work, please let us know by following the instructions under the "Support" section in the help manual. Send in the files that are created for further analysis.

Customizing RAMMon

RAMMon is built with PassMark's SysInfo DLL SDK. If you would like to use this technology in your application, please check out the SysInfo DLL SDK or contact us at Click to send mail (JavaScript required)

Installation

Double click on the rammon.exe installer file to run the RAMMon installer. Additional information is provided in the included HTML help files. You can view them from RAMMon's help button/menu or open the start page "index.html" in the "HELP" folder.
Known issues

Some system vendors ship non standard systems. Including some Dell, HP & Lenovo systems. It might not be possible to locate the SMBus on these machines to collect the RAM's SPD data. Also, you need to be the adminstrator to run the software.









Click here to visit the author's website.
Continue below for the main download link.


Downloads Views Developer Last Update Version Size Type Rank
8,208 11,422 PassMark Software <img src="https://www.oldergeeks.com/downloads/gallery/thumbs/passmarkrammon_th.png"border="0"> Dec 01, 2019 - 12:10 V1.1 (Build 1001) 2.07MB EXE 5/5, out of 28 Votes.
